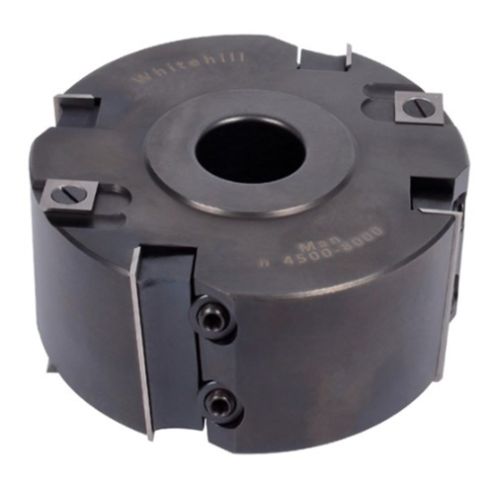

Whitehill 125 x 60 x 1-1/4” Bore Shear Rebate Head Z4 060S00100

Whitehill 125 x 60 x 1-1/4” Bore Shear Rebate Head Z4 060S00100

Whitehill Reference: 060S00100

Cutter Block design in Steel for rebating.

Suitable for MDF boards, plywood, hard-textured, glued and solid timber. Tool body in light aluminium, equipped with Tungsten Carbide reversible knives and Tungsten Carbide spurs (2 spurs each on top and bottom).

Head designed with shear angle for clean cut, 4 cutting blades.

Specifications:

Height: 60mm

Diameter: 125mm

Suitable for MDF: Yes

Max rpm: 6500rpm

Number of Cutters: 4

Number of Spurs: 4

Shear or Straight: Shear

Product Material: Steel

MAN or MEC: MAN

Minimum rpm: 3500rpm

Bore Diameter: 1-1/4” (31.75mm)

Please do not hesitate to contact our in-house technical advisors via webchat for free of charge technical advice.

Picture is for illustration purposes only.
