16 x 28mm PCD Diamond Router Z=3+3 (Turbo) S=16 With 4mm Tip Depth

16 x 28mm S=16 PCD Diamond Router cutter

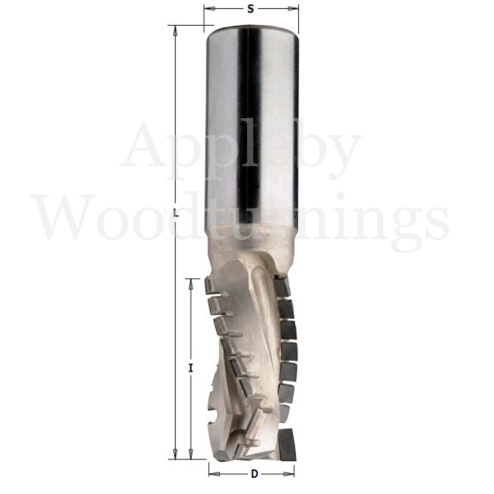

The tool sizes are as follows.

Cut diameter = 16mm

 Shank diameter = 16mm

  Cut Length = 28mm

 3 Flute Turbo

4mm Tip Depth

Used for grooving  jointing rebating or general sizing of chipboard and MDF-board either raw laminated or veneered.

These tools are designed to give optimum cutting quality due to the huge shear angles of each tip segment alternating up and down along the cutting edge. They can be resharpened several times which leads to economic efficiency and further cost savings.

We stock a wide range of these cutters also in Z=1+1 and Z=2+2 in all diameter and cut lengths.
