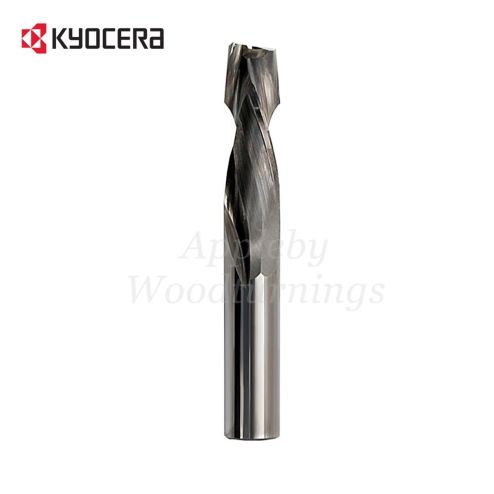

16mm dia x 45mm cut Z=2+2 Up/Down Compression CNC Solid Carbide Spiral Router
Right Hand Rotation
Particularly suitable for double sided Veneers, Melamine, Chipboard & MDF material for a clean finish
This quality CNC manufactured spiral has been made from the best quality grade solid carbide giving increased tool life manufactured in the UK by Kyocera UNIMERCO.
The tool geometry is designed from years of testing and in-house knowledge and is suitable for general joinery in all timbers -Softwood Hardwood and Manufactured Board Materials.
The Tool dimensions are:-
(CD) Diameter= 16mm
(CL) Cut Length = 45mm
(OL) Total Length = 110mm
(SD) Shank diameter = 16mm
The part of the bit closest to the tip is upcut and the other end is downcut compressing the material into the centre of the bit protects the top and bottom layers.
Our in-house CNC commissioning engineer Jeremy Appleby will be happy to provide Free Of Charge assistance to optimise your applications/ parameters.
We offer a full range of Spiral routers for almost every application. Our standard program ranges in size from 6-25mm with various cut lengths depending on diameter.
Most sizes are available in positive and negative, Left Hand and Right Hand rotation, 2 flute or 3 flute designs along with full custom tools on special request.
NB- Pictures shown are for advert purposes only and may not show correct diameter and length.
Item will be exactly as described above and supplied in a plastic packaging container for safe transportation.
|Cut Length||40 - 49mm|
|Qty of Flutes||2+2 Wing|
|Chip Flow||Up / Down Compression|
|Feed Rate||6 - 12m/min|
