16 x 27mm PCD Diamond Router Z=2+2 S=16 With 2.5mm Tip Depth

16 x 27mm S=16 PCD Diamond Router cutter

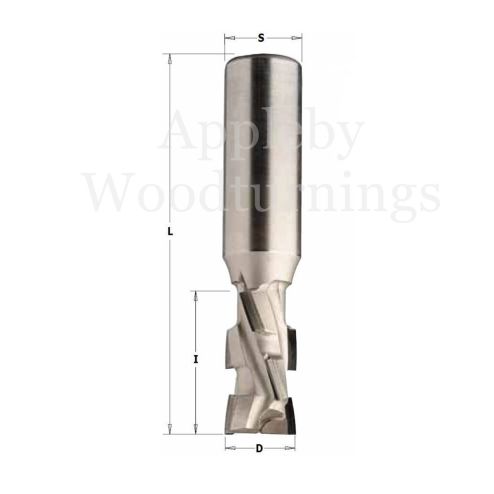

The tool sizes are as follows.

Cut diameter = 16mm

 Shank diameter = 16mm

  Cut Length = 27mm

Tip Depth = 2.5mm

Used for grooving  jointing rebating or general sizing of chipboard and MDF-board either raw laminated or veneered.

These tools are designed to give optimum cutting quality due to the huge shear angles of each tip segment alternating up and down along the cutting edge. They can be resharpened several times which leads to economic efficiency and further cost savings.

The one plus one tip design gives a effective staggered cut and allows large gullet areas for chip removal.  These tools have long tool life built within them and use a large 2.5mm deep diamond segment for each tip.  At the bottom of the tool there is a single TC Carbide plunge tip for ramp plunging opperations.

We stock a wide range of these cutters in also Z=1+1 , Z=2+2 and Z=3 Turbo in all diameter and cut lengths.

Our in-house CNC commissioning engineer Jeremy Appleby will be happy to provide Free Of Charge assistance to optimise your applications/ parameters.
