Whitehill 100 x 50 x 1¼" Bore Z2 Rebate Head Aluminium 060A00020

Whitehill 100 x 50 x 1¼" Bore Z2 Rebate Head Aluminium 060A00020.

Whitehill Reference: 060A00020

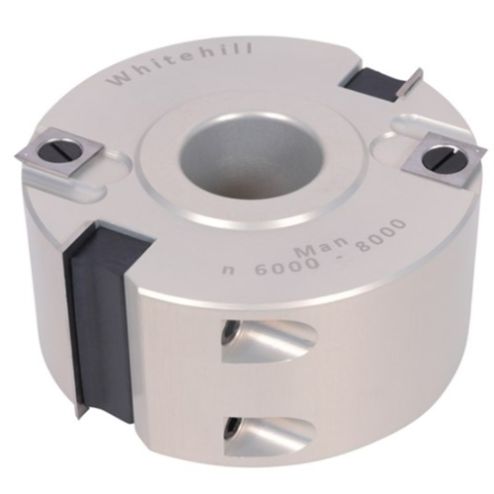

Cutterhead design for rebating.

Suitable for MDF boards, plywood or hard-textured, glued and solid timber. Equipped with Tungsten Carbide reversible knives and Tungsten Carbide spurs (two spurs each on top and bottom). Head designed straight, with two cutting blades.

Specifications:

Height: 50mm

Diameter: 100mm

Suitable for MDF: Yes

Max rpm: 8000rpm

Number of cutters: 2

Number of spurs: 4

Shear or Straight: Straight

Product Material: Aluminium

MAN or MEC: MAN

Minimum rpm: 6000rpm

Bore Diameter: 1-1/4” (31.75mm)

Please do not hesitate to contact our in-house technical advisors via webchat for free of charge technical advice.

Picture is for illustration purposes only.
