Trend Kitchen Worktop Jig 700mm KWJ700

Trend Kitchen Worktop Jig 700mm KWJ700

Hard wearing CNC machined Compact Grade High Pressure Laminate 12mm thick jig that cuts both parts of the joint in 15 minutes including setting up.

Left hand and right hand corners, 400mm radius peninsular joint, 45 degree end cut with slight radius, 45 degree trade corner solution for hob units, 100mm radius corner, 40mm radius corner, 35mm kitchen door hole and 3/4inch BSP hole for mixer taps.

Fixed lengths for 250mm, 300mm, 400mm, 500mm, 550mm, 600mm, 616mm, 635mm. 650mm and 700mm wide worktops.

Cuts up to 40mm thick worktops with or without anti-drip postformed edge.

Three open-ended bolt recesses (dog bone style) for 150mm bolts.

Engraved lines for short 65mm bolts and worktop cross-cut.

10mm diameter plastic pins with tapered shoulder for tight fit provides three point pin contact to ensure ease of setting up.

Engraved markings for identification of pin holes

Pins made from ABS plastic for strength.

Specifications:

Lenght – 985mm

Width – 390mm

Thickness – 12mm

Weight – 5.4kg

End Cut – 45 degrees

Corner Radius – 40mm

Corner Radius – 100mm

Corner Radius – 400mm

Corner Mitre Joint – 45 degrees

Female cut material width loss (inset) – 35mm

Bolt recesses – 3

Bolt recesses centres – 175 + 175mm

Bolt recesses width – 14mm

Please do not hesitate to contact our in-house Woodwork machinist by live chat, for free of charge technical advice.

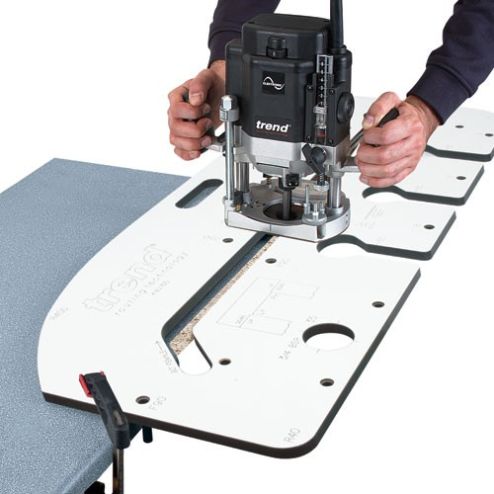

Note picture is for advert purposes only.
