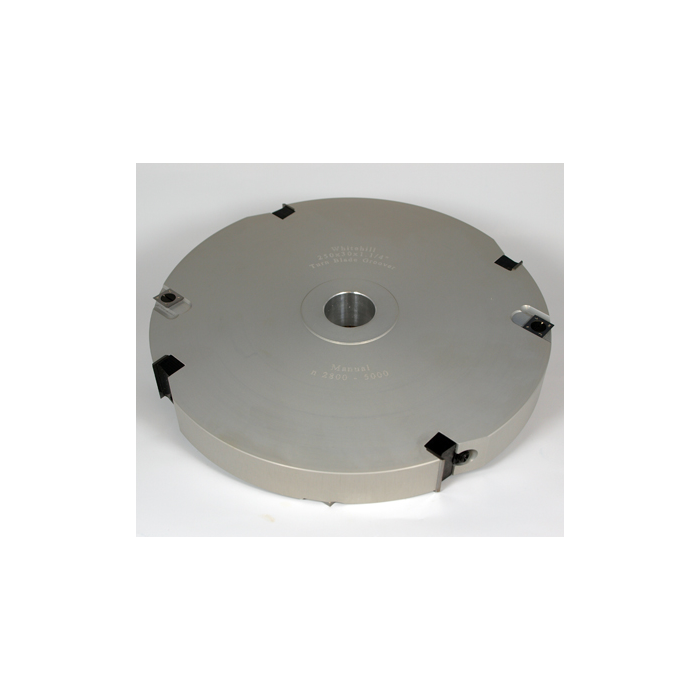

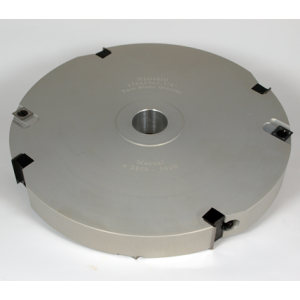

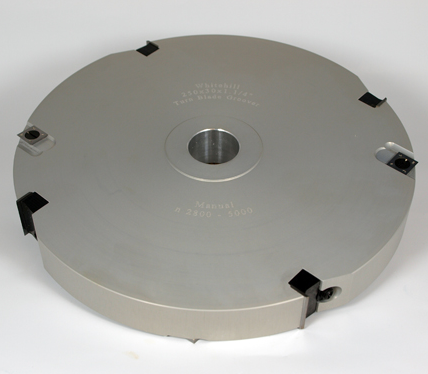

175 x 16mm Id=31.75mm Fixed Turn Blade Groover
Whitehill Ref: 200S00936
The ideal tool for use on your spindle moulders to create precision grooves in a wide range of material.
Technical information:-Cutting diameter: 175mmInternal bore size: 31.75mm
Cutting depth: 51mm
Groove width: 16mm
Suitable for use on all hardwoods, softwoods, MDF and chipboardsAluminium Body N/Min: 4,000RPM
The head comes pre-fitted with two cutting tips and two spur tips These tips are the European standard sizes and can be turned four times to use each of their edges in order to achieve crisp,clean and precise edges.
15 x 12 x 1.5mm reversible knives (2 cutting edges) 030T00015
14 x 14 x 2mm spur tips (4 cutting edges) 030T00001
You will find all spare parts for this block in the reversible turn blade category of our shop
Please do not hesitate to contact our in house, Woodwork Machinest for Free Of Charge advice.
Thanks for looking and we hope to see you as a repeat customer of the future.
We also offer combined shipping so if you require Knives with these Blocks we will combine the delivery.
Note all prices shown are including Vat and a full Vat invoice is sent with every order.
Picture is for advert purposes
|Bore Diameter||31.75mm (1"1/4")|
|Block Made Of||Aluminium|
