CMT Ø18mm x 55mm cut Length Shank=18mm Carbide CNC Compression Spiral Router Z=2+2 Up/Downcut Right Hand Rotation
CMT Part Code - 190.180.11
 The tool sizes are as follows:
Cut Diameter = 18mm
Shank Diameter = 18mm
Cut Length = 55mm
Total Length = 110mm
Z= 2+2Â
Right Hand Rotation
This tool is a Z=2+2 and will provide excellent finish on both the upper and lower side of the workpiece.
Used for cutting, copying, panel-sizing and any routing applications on solid wood, wood composites, plastic materials and laminates. Use a high feed speed on well clamped workpieces. can be used on machining centres, point to point machines, CNC routers and hand held routers equipped with chucks or adapters.
A Special super-micrograin carbide formulation was created to produce and hold a keen cutting edge. The new low-angle spiral is designed specifically to shear wood cleanly and provide efficient chip ejection. The tool runs cooler and the edges last longer.
Our in-house CNC commissioning engineer Jeremy Appleby will be happy to provide Free Of Charge assistance to optimise your applications / parameters.

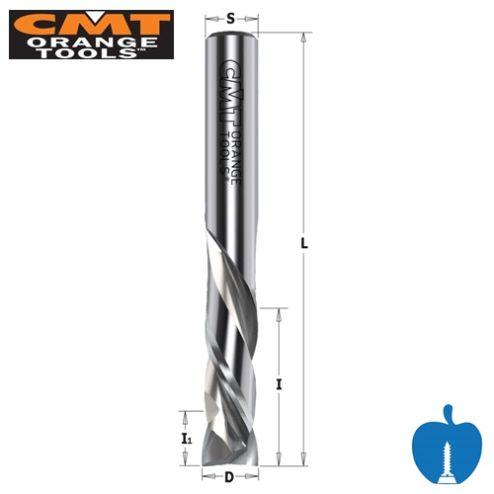

Picture for advert purposes only and will be exactly as described.
Price | £170.40 |
---|---|
Brand | CMT |
Diameter | 18mm |
Cut Length | 50 - 59mm |
Qty of Flutes | 2+2 Wing |
Chip Flow | Up / Down Compression |
Feed Rate | 6 - 12m/min |
Rotation | Right Hand |
