380mm Diameter 72 Tooth Freud Triple Chip Panel Sizing Saw Blade with 80mm Bore
£166.80
£139.00
On request
SKU
SBTRI38072FRE80

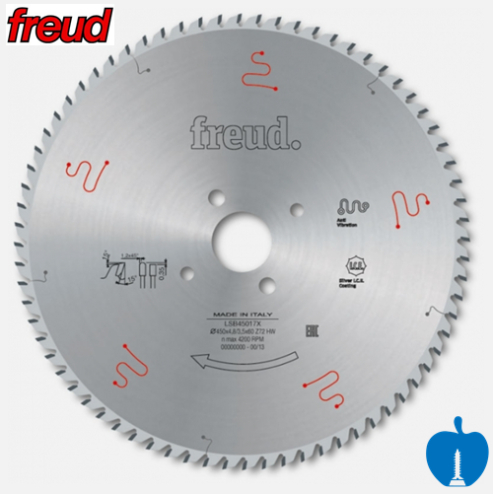

380mm Diameter 72 Tooth Freud Triple Chip Panel Sizing Saw Blade with 80mm Bore
Bulk Save Options
Qty
Per Item
Save
1
£166.80
£139.00
-
2
£153.46
£127.88
8%
3
£145.12
£120.93
13%
Freud 380mm Diameter 72 Tooth Triple Chip Panel Trimming Saw Blade with 80mm Bore
Specifications
Diameter = 380mm
Number Of Teeth = Z=72
Internal Bore = 80mm
Hook Angle = Positive +15°
Kerf = 4.2mm
Plate Thickness = 3.2mm
Tooth Form = Triple Chip
Max RPM = 5000
Pinhole = 4 Pin Holes 9mm Diameter @ 100mm Centres 4/9/100
Second Set Of Pinholes = 2 Pin Holes 9mm Diameter @ 110mm Centres 2/9/110
Third Set Of Pinholes = 2 Pin Holes 14mm Diameter @ 110mm Centres 2/14/110
Best Finish Obtained When Also a Scoring Blade
To be used on Static or Sliding Table Saws for accurately cutting sheet materials like Chipboard (Laminated or Bare), MDF, Melamine Faced Boards, Solid Veneers, Plywood, Particle Board and Fibre Board.
4.4mm Kerf, 3.2mm Plate thickness for clean safe cutting
Reamed Bore to ensure precise fit to spindle.
+15° Hook angle delivers a ultra fine finish.
TCT Tipped for optimum edge retention.
High Tooth count reduces feed and cutting speed for a clean controlled cut.
Saw blade sharpening services also available
Please check this Blade is suitable for your aplication.
Picture for advert purposes only and will be exactly as described.
More Information
| Price | £166.80 |
|---|---|
| Blade Diameter | 380mm |
| Bore Size | 80mm |
| Qty of Teeth (Z) | 72 |
| Blade Type | Panel Sizing |
| Brand | Freud |
| Tooth Design | Triple Chip (TRI) |
| Cutting Kerf / Width | 4.4mm |
| Range Selection (Brand) | High performance (Freud) |
Reviews
Write Your Own Review
Frequently bought together
Available

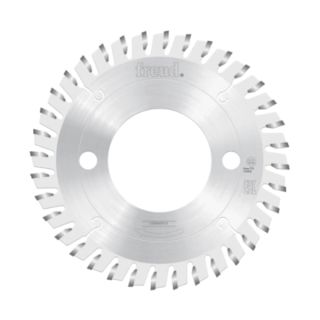

Freud 200mm dia 36-tooth 80mm Bore Conical Scoring Saw Blade to suit SCM GABBIANI P80 Machines
