1/2" dia x 1" cut PCD Diamond Router Z=1+1 R/H S=1/2"

1/2" dia x 1" cut S=1/2" PCD Diamond Router Cutter

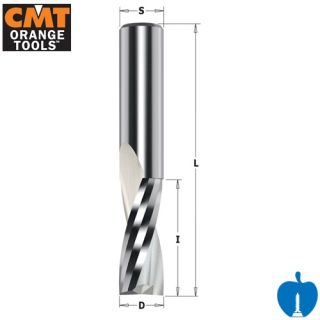

The tool sizes are as follows:

Cut Diameter (D) = 1/2" (12.7mm)

Shank Diameter (S) = 1/2" (12.7mm)

Cut Length (I) = 1" (25.4mm)

Z = 1+1

Right Hand Rotation

These tools are designed to give optimum cutting quality due to the huge shear angles of each tip segment alternating up and down along the cutting edge.

They can be resharpened several times which leads to economic efficiency and further cost savings.

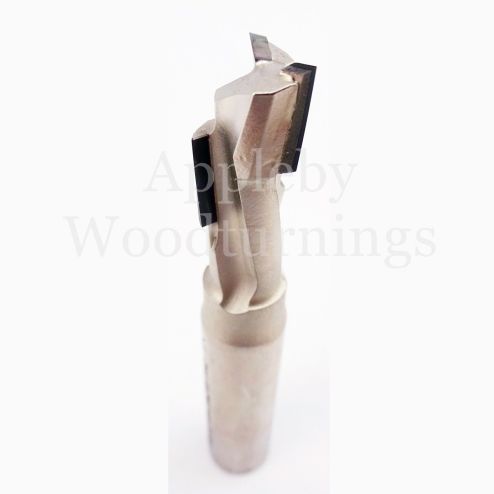

The one plus one tip design gives an effective staggered cut and allows large gullet areas for chip removal.

At the bottom of the tool there is a single Tungsten Carbide plunge tip for ramp plunging operations.

--------------------

We also stock a wide range of these cutters in Z=1+1, Z=2+2 and Z=3 Turbo in all diameters and cut lengths.

Our in-house CNC commissioning engineer Jeremy Appleby will be happy to provide Free Of Charge assistance to optimise your applications / parameters.
